Installation

Install UE5

Install Unreal Engine 5 from Unreal Engine website.

Current LychSim plugin is only tested with Unreal Engine 5.5.4 on Windows and macOS.

Install and Compile LychSim Plugin

1. Create a new Unreal Engine project.

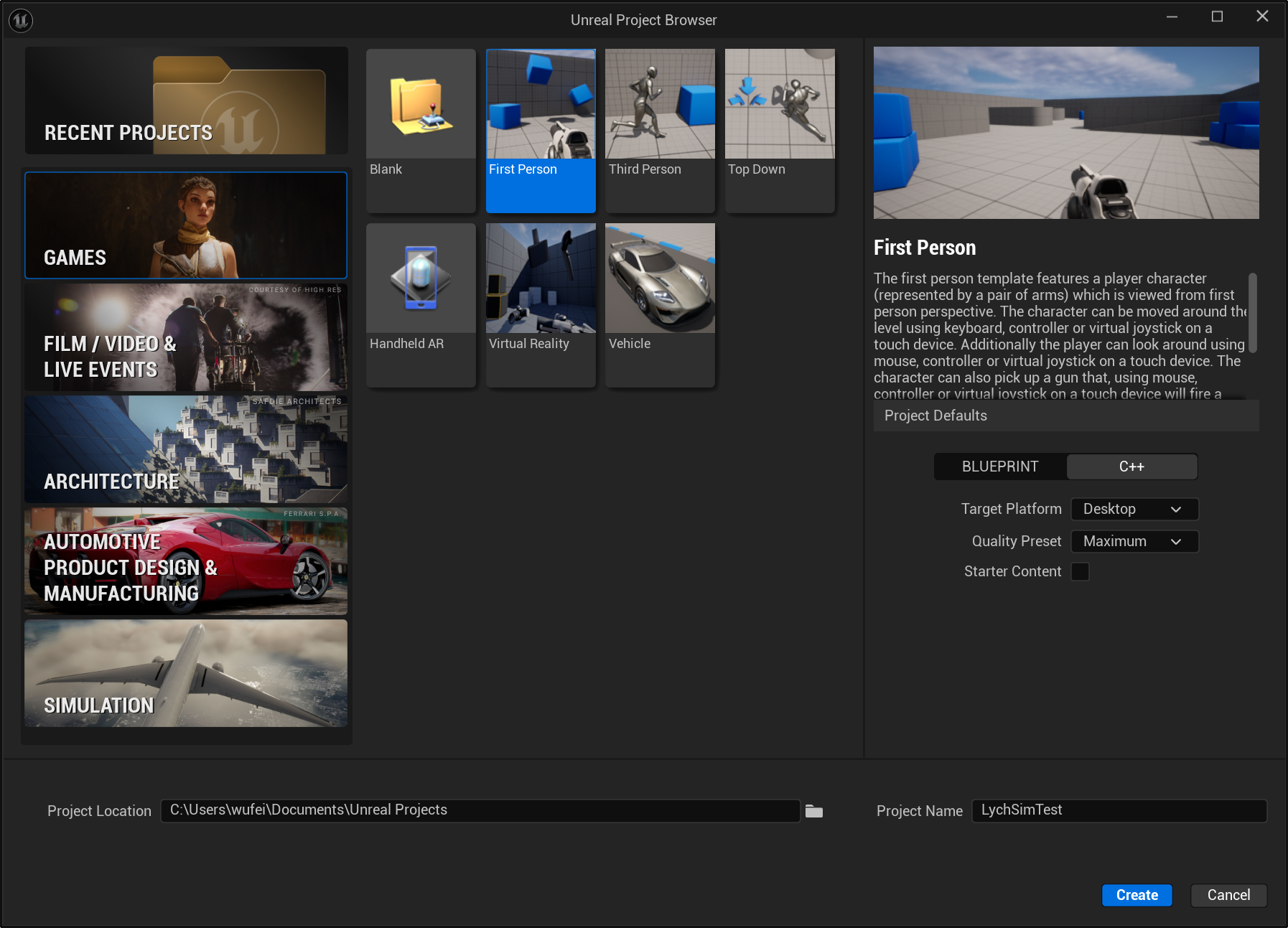

   • Create a new project using the “Games - First Person” template.



2. Add LychSim plugin source code to the Unreal project.

   • First create the Plugins directory in your Unreal project folder.

   • For windows users, link the code with the following command (in cmd with administrator privileges):

   mklink /J ^
   "C:\Users\username\Documents\Unreal Projects\LychSimTest\Plugins\LychSim" ^
   "C:\Users\username\Documents\LychSim\ue_plugin\LychSim"


   • For macOS users, use the following command (in Terminal):

   ln -s /Users/username/Documents/LychSim/ue_plugin/LychSim \
      /Users/username/Documents/Unreal\ Projects/LychSimTest/Plugins/LychSim


3. Re-generate project files. This helps Unreal Engine and Visual Studio recognize the new plugin.

   • Option 1: Right-click on the .uproject file of your Unreal project and select “Generate Visual Studio project files”.

   • Option 2.a: For Windows users, open a command prompt and navigate to the Unreal Engine installation directory, then run the following command:

   "C:\Program Files\Epic Games\UE_5.5\Engine\Binaries\DotNET\UnrealBuildTool\UnrealBuildTool.exe" ^
   -projectfiles -project="C:\Users\username\Documents\Unreal Projects\LychSimTest\LychSimTest.uproject" ^
   -game -engine


   • Option 2.b: For macOS users, use the following command in Terminal:

   /Users/Shared/Epic\ Games/UE_5.5/Engine/Build/BatchFiles/Mac/GenerateProjectFiles.sh \
      -project="/Users/username/Documents/Unreal Projects/LychSimTest/LychSimTest.uproject"


4. (Windows users only) Compile the plugin in Visual Studio.

   • Open the generated .sln file in Visual Studio.

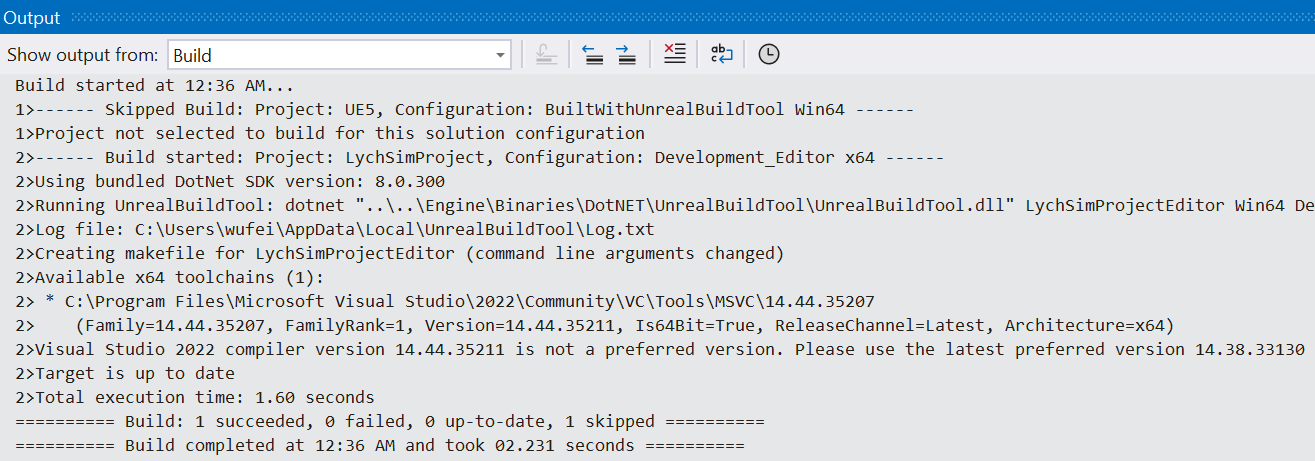

   • Click on “Build” in the top menu, then select “Build Solution”.



5. (macOS users only) Compile the plugin in Xcode.

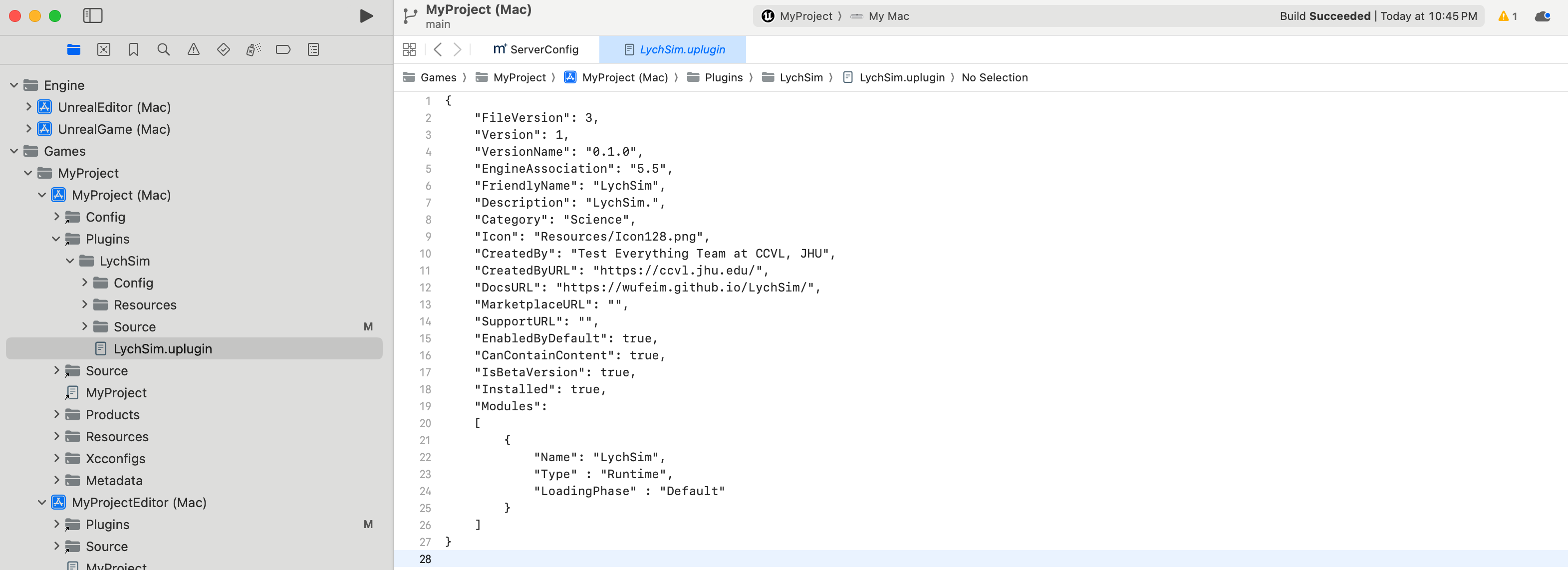

   • Open the generated .xcworkspace file in Xcode.

   • Click on “Product” in the top menu, then select “Build”.



6. Enable the LychSim plugin in Unreal Engine.

   • Open your Unreal Engine project.

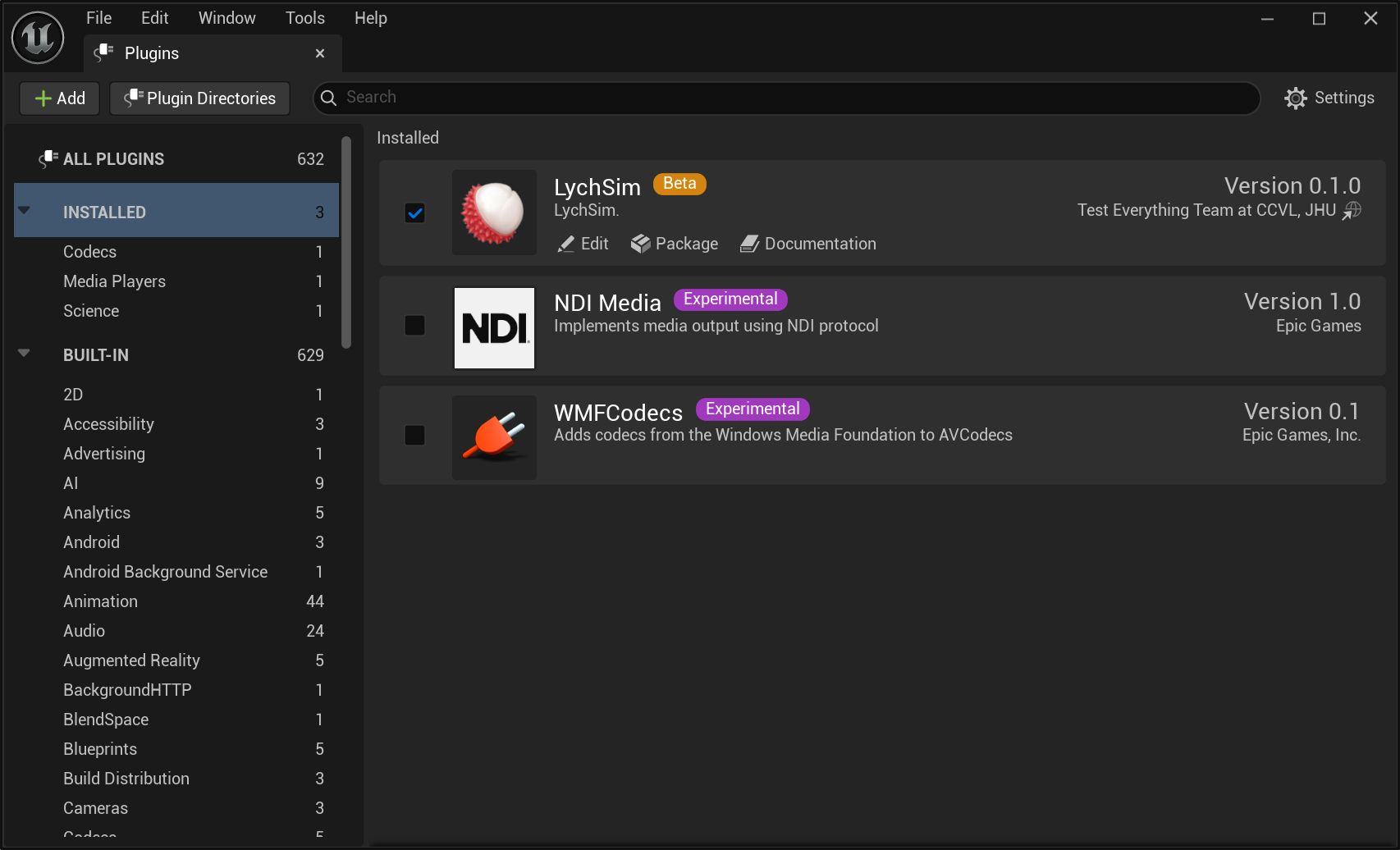

   • Go to “Edit” > “Plugins”.

   • Find the LychSim plugin in the list and enable it.

   • Restart Unreal Engine if prompted.



7. Verify the installation.

   • Start the Unreal Engine project by clicking the “Play” button.

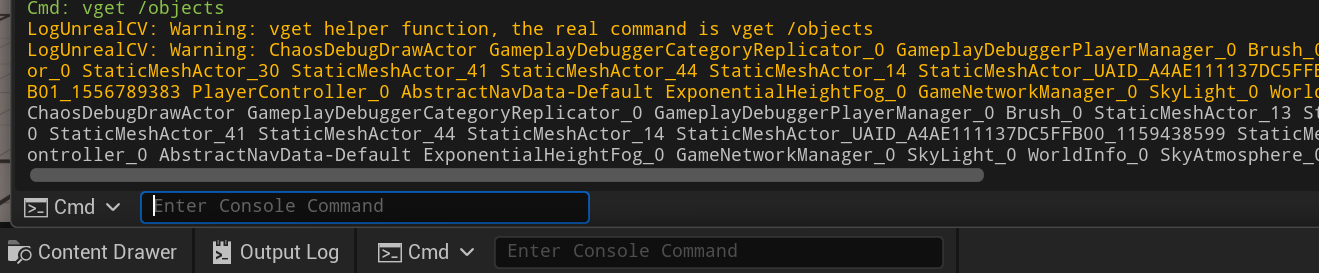

   • From the Unreal Engine built-in Cmd, run the following command: vget /object.



Install LychSim Python Package

From the root directory of the repository, run:

pip install -e .
