Using LychSim with Infinigen

This section covers how to use LychSim with Infinigen, a tool for generating synthetic indoor scenes.

Generating Infinigen Scenes

Please follow the instructions in Infinigen to generate synthetic indoor scenes. Note that opengl_gt.gin should be used to generate ground truth data, such as object locations and orientations that are necessary to reconstruct a scene in LychSim. As an example,

python -m infinigen.datagen.manage_jobs \
    --output_folder outputs/infinigen_scenes --num_scenes 1 \
    --pipeline_configs local_256GB.gin monocular.gin opengl_gt.gin indoor_background_configs.gin \
    --configs fast_solve.gin singleroom.gin \
    --pipeline_overrides get_cmd.driver_script='infinigen_examples.generate_indoors' manage_datagen_jobs.num_concurrent=16 \
    --overrides compose_indoors.restrict_single_supported_roomtype=True compose_indoors.terrain_enabled=False

Loading an Infinigen Scene

An Infinigen scene can be loaded into LychSim-compatible format using lychsim.tools.infinigen.load_infinigen_scene for scene data and lychsim.tools.infinigen.load_infinigen_frame for both scene and frame data. For example,

from lychsim.tools.infinigen import load_infinigen_scene

scene_path = '/path/to/infinigen/outputs/infinigen_scenes/231233f7'

# lychsim.core.scene.InfinigenScene
infinigen_scene = load_infinigen_scene(scene_path)

from lychsim.tools.infinigen import load_infinigen_frame

scene_path = '/path/to/infinigen/outputs/infinigen_scenes/231233f7'

# lychsim.tools.infinigen.InfinigenFrameOutput
infinigen_frame: InfinigenFrameOutput = load_infinigen_frame(
    scene_path, camera_index=0, frame_index=48)

The frame_index parameter can be skipped so the script will automatically load the first available frame.

SemanticScene I/O

After loading scenes into lychsim.core.SemanticScene, they can be saved and loaded as NumPy archive file easily.

np.savez(save_path, data=infinigen_frame.scene.to_dict())

scene_loaded = SemanticScene.from_npz(save_path)

assert infinigen_frame.scene == scene_loaded, \
    "Loaded scene does not match the original scene."

Scenes can also be printed and checked for correctness.

print(infinigen_frame.scene)

Example output:

SemanticScene(
    name=default_scene,
    uid=None,
    levels=[
        SemanticLevel(
            name=level_0,
            uid=None,
            regions=[
                SemanticRegion(
                    name=bedroom_0/0,
                    uid=None,
                    polygon=...,
                    obb=...,
                    objects=[
                        Object(name=FloorLampFactory(7020734).spawn_asset(2459297), uid=1_0_0_0)
(omitted)

See full script in example_scripts/infinigen/load_and_save_scene.py.

Visualizing an Infinigen Frame

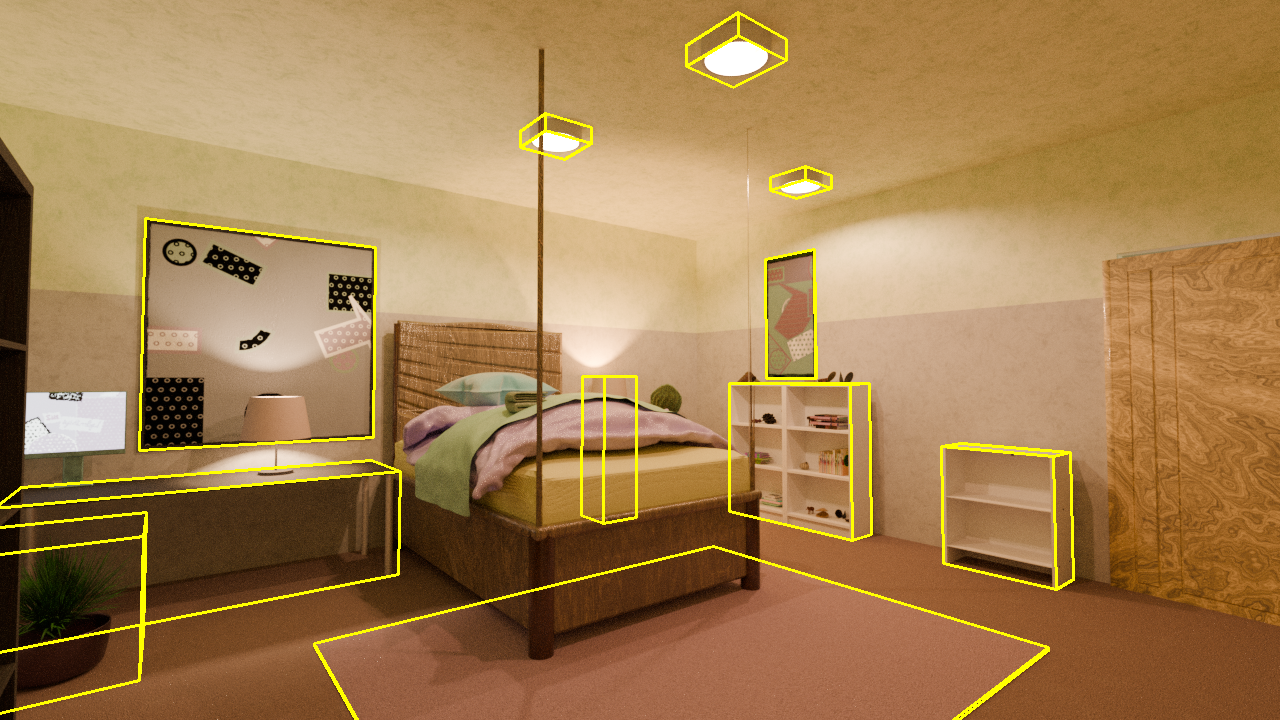

In this section, we show how to visualize object oriented bounding boxes (OBB) on an Infinigen frame.

First we obtain camera extrinsics and intrinsics.

import numpy as np

camera_pose_inv = np.linalg.inv(infinigen_frame.camera_pose)
K = infinigen_frame.K

Prepare a canvas for visualization.

from lychsim.utils import rgbd2rgb

orig_image = rgbd2rgb(infinigen_frame.image)
plot_image = orig_image.copy()

Visualize object OBBs.

for obj in infinigen_frame.scene.get_all_objects():
    if not infinigen_frame.visibility[obj.uid]:
        continue
    if obj.obb is None:
        continue
    plot_obb(plot_image, obj)

See full script in example_scripts/infinigen/visualize_infinigen_bbox3d.py.

Visualizing a Scene Layout

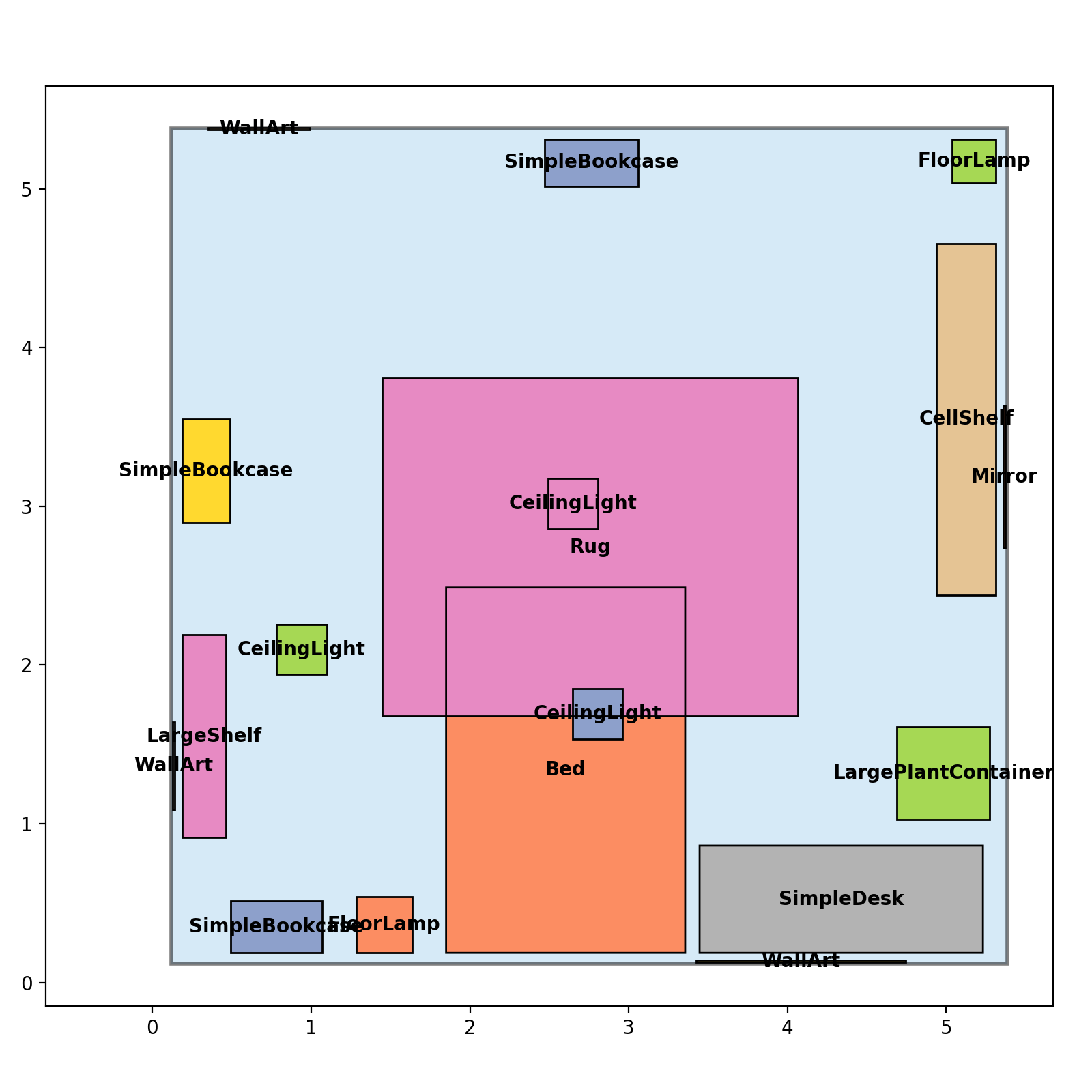

In this section, we show how to visualize a bird’s eye view layout of an Infinigen scene.

We start by creating an empty canvas.

import matplotlib.pyplot as plt

fig, ax = plt.subplots(figsize=(8, 8))

We first visualize the floor of the room.

from matplotlib.patches import Polygon

floor_coords = np.array(region.polygon.exterior.coords[:])
floor_coords = np.concatenate([
    floor_coords, np.zeros((floor_coords.shape[0], 1))], axis=1)
floor_coords = (
    region.obb.rotation @ floor_coords.T
).T + region.obb.translation
ax.add_patch(Polygon(
    floor_coords[:, :2], facecolor='#AED6F1',
    edgecolor='black', alpha=0.5, linewidth=2))

Then we sort the objects in the room so we visualize them from lower to higher.

plot_objects = []
for obj in region.objects:
    corners = obj.obb.corners[:4]
    plot_objects.append((
        obj.name.split('Factory')[0],
        corners[:, :2].tolist(),
        np.mean(corners[:, :2], axis=0),
        float(corners[0, 2])))
plot_objects.sort(key=lambda x: x[3])

Lastly we draw 2D-view of objects’ oriented bounding boxes (OBB) on the canvas.

for idx, obj in enumerate(plot_objects):
    ax.add_patch(Polygon(
        obj[1], facecolor=object_colors[idx % len(object_colors)]))
for idx, obj in enumerate(plot_objects):
    ax.add_patch(Polygon(
        obj[1], facecolor='none', edgecolor='black'))
for idx, obj in enumerate(plot_objects):
    x, y = obj[2]
    ax.text(
        x, y, obj[0], ha='center', va='center',
        fontsize=10, weight='bold')
